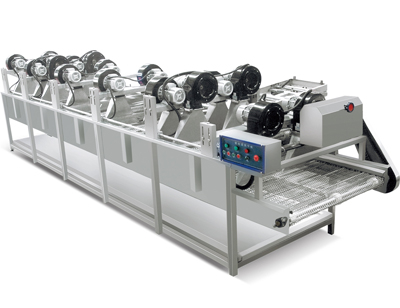

The vibration air dryer is a new type of vegetable and fruit water removal equipment, mainly used for removing water from the surface of cleaned vegetables and fruits. The vibration blow dryer solves the problems of vegetable leaf damage caused by traditional centrifugal dehydrators and incomplete water removal caused by traditional blow dryers.

Features and benefits:

The technical performance of the flip air dryer is stable and the efficiency is high. It has a variety of functions that cannot be done by other devices. The machine does not use steam, which greatly saves energy and reduces costs. Large air volume and low noise fan are used for natural air drying. The air-drying design is multi-turn conveying, and there is a reverse and anti-wind device to prevent the occurrence of blow-drying dead angles, and the air-drying machine has a good drying effect. The equipment adopts frequency conversion conveying, and the speed is adjustable and the conveying is stable.

Technical Parameters:

Name:Flip Air Dryer

Dimensions: can be customized according to needs

Voltage: 110—220V

Material: 304 stainless steel

Power: 1.5kw

Applicable industries: catering industry, fruit and vegetable processing plants, snack food factories

Uses: It is used for the dehydration of meat and vegetable products after sterilization or the removal of surface water after vegetable washing.

Running speed: frequency conversion adjustable Weight: 300kg

Features and benefits:

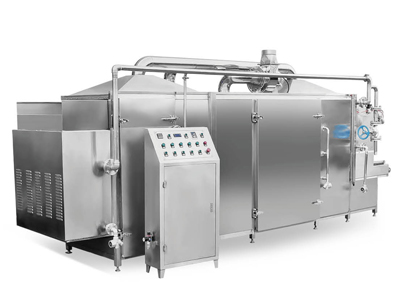

Multi-layer belt dryer is a kind of batch, continuous production of drying equipment, the main heating methods are electric heating, steam heating, hot blast stove heating, gas heating. Its main principle is to evenly spread the material on the mesh belt, the mesh belt adopts 12-60 mesh steel wire mesh belt, dragged by the transmission device to move back and forth in the dryer, the hot air flows through the material, and the water vapor is discharged from the moisture exhaust hole, so as to achieve the purpose of drying, the length of the box is composed of standard sections, in order to save the site, the drying machine can be multi-layered, the common ones are two rooms and three layers, two rooms and five layers, four rooms and five layers, four rooms and seven layers, etc., the length of 5-20m can be customized, and the effective width is 0.6-3.0m.

Equipment features:

1. Solve the problem of water vapor returning to the material after the system temperature decreases during the same direction movement caused by the downstream dehumidification of the traditional dryer;

2. In the drying process, the hot air flow moves forward from the tail, fully contacts with the material, and makes full use of heat transfer, convection, and radiation heat transfer;

3. The heat energy is directly transmitted to the material, so that the moisture of the material is continuously evaporated in the cylinder, and the air induction device at the inlet will pump out a large amount of water and moisture to prevent the secondary pollution caused by dust discharge;

4. Promote the movement of materials through stainless steel mesh belts to complete the whole drying process;

5. Countercurrent conduction dehumidification to avoid reducing repeated drying procedures.

6. There are many heating methods to choose from: electric heating, steam heating, hot blast stove heating, gas heating;

7. The heat preservation in the dryer box is good, the material is evenly heated, the nutrient loss is less, the drying environment is clean, and the finished product is dried without deformation, cracking, discoloration, oxidation and other inferior effects, and the storage period is long, which can effectively protect the material compared with the traditional drying equipment.

8. The equipment is highly targeted, practical, applicable and energy-intensive;

9. High degree of automation and intelligence: automatic control and constant temperature device, 24-hour continuous operation, not affected by climate, water and electricity separation, no leakage risk, no explosion risk;

10. Installation and convenience: integrated drying, dehumidification, installation and demolition are very convenient, and can be installed indoors or outdoors.

Equipment Advantages:

● Made of stainless steel

The equipment is made of SUS304 stainless steel, with good structural strength, stable conveyance, and adjustable conveying speed.

● Steam heating: The temperature zone is uniform

Steam heating is adopted, heat exchange device is equipped, and the drainage fan is equipped with an air deflector to make the temperature zone of the drying room uniform and the drying temperature controllable.

● Meet different needs

The internal mesh belt of the equipment runs in three and five layers of cycles, which can meet the drying needs of different products and outputs.

Technical Parameters:

Features and benefits:

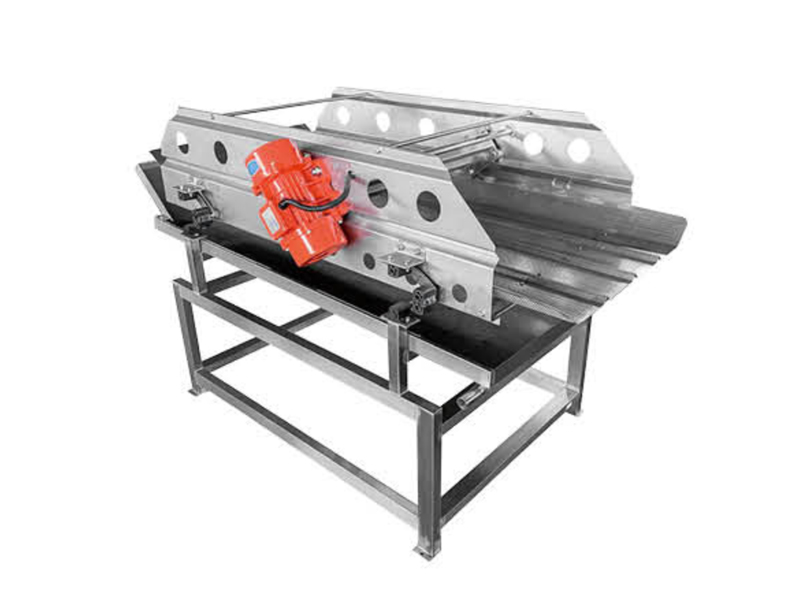

Vibrating draining machine is one of the simple and effective flow equipment in the food production line, the vibrating draining equipment produced by our factory absorbs the advanced advantages of foreign countries, integrates a variety of new technologies and new processes, and is the most widely used at home and abroad, a complete automatic production line for food processing. It has been proved by the actual use of more than 100 enterprises at home and abroad: wide processing versatility, good treatment effect, low investment, energy saving and other characteristics, it is one of the most ideal and economical production line equipment.

The equipment is made of stainless steel, and the vibration source is generated by the exciter, so that the material is thrown up on the screen to play the role of vibration and drainage. It is mainly used in dehydrated vegetables, grains, plastics, chemicals, pharmaceuticals and other industries.

It is mainly suitable for a large number of water droplets remaining on the food packaging bag after water bath sterilization, and the vibrating screen can effectively remove the large water droplets on the surface of the packaging bag, so as to achieve the effect of evenly spreading. Drain the remaining water from the bag by vibrating.

Details:

1. Made of stainless steel

The equipment is made of 304 stainless steel, which has high strength, good corrosion resistance and long service life;

2. Double vibrator

Double vibrator is adopted, and the drainage effect is good;

3. There can be fabrics

It can be dispersed without affecting the next process;

4. The amplitude is adjustable

The vibration amplitude can be adjusted to improve the drainage efficiency

This machine is widely used in all walks of life such as grain, vegetables, and food, and is suitable for grading and dehydration of various materials to varying degrees. The equipment is also used for water removal on the surface of food packaging bags after pasteurization and cooling, and for the removal of surface moisture after vegetable washing.

Equipment features:

1) Made of stainless steel all over

The equipment is made of 304 stainless steel, which has high strength, good corrosion resistance and long service life;

2) Double vibrator

Double vibrator is used to drain the water well

3) There can be fabrics

It can be dispersed without affecting the next process

4) The amplitude is adjustable

The vibration amplitude can be adjusted to improve the drainage efficiency

5) It can be matched with various production lines

The processing is versatile and the processing effect is good

Technical Parameters:
