The spiral cleaning (peeling) machine is mainly composed of motor transmission, hair roller, etc., and adopts the principle of hair brush, which is widely used for cleaning and peeling of round and oval fruits and vegetables. The use of spiral blade propulsion, flow operation, to achieve automatic continuous cleaning and peeling, can be used with the production line.

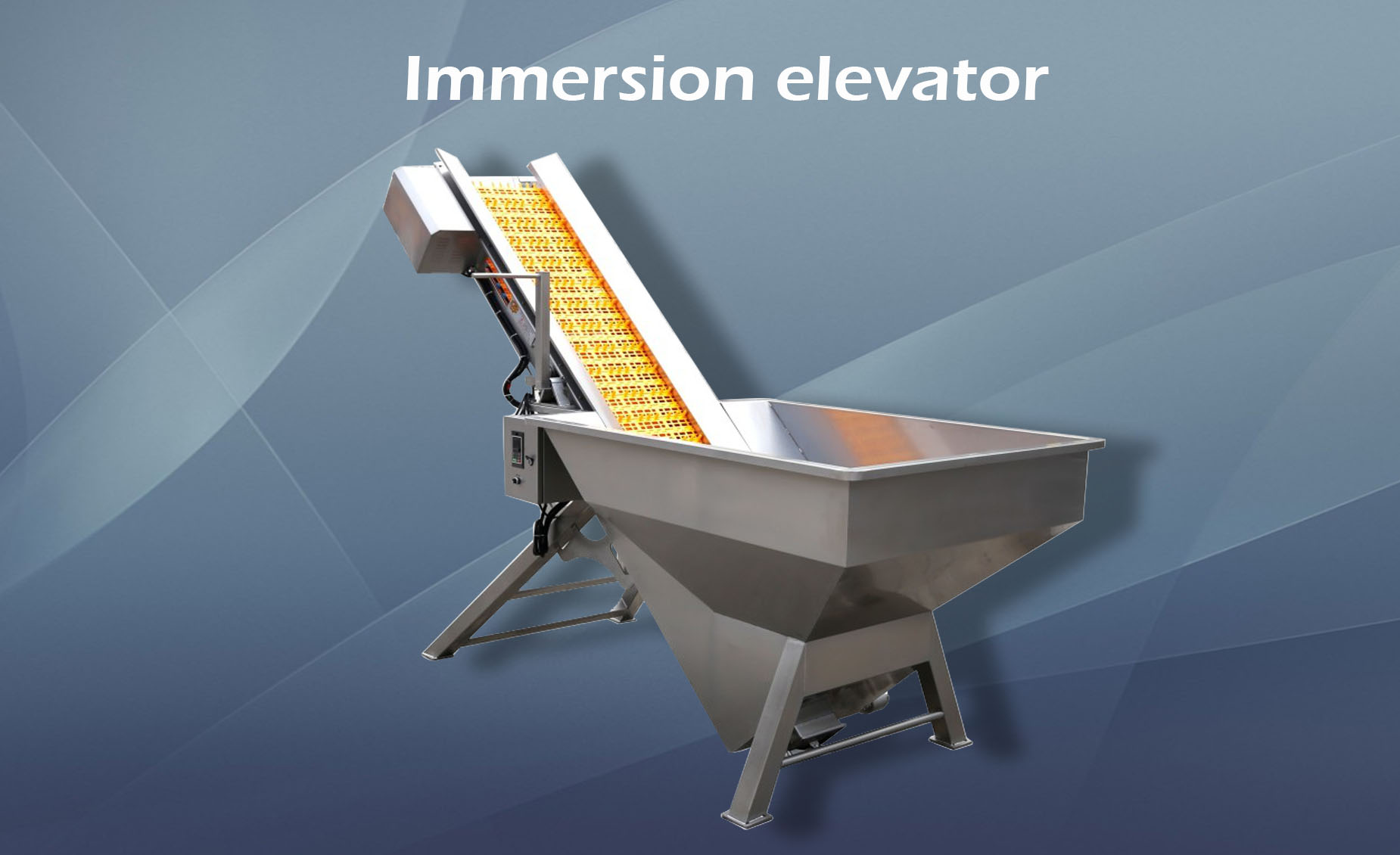

Immersion elevator:


  • Name: Immersion elevator

  • Voltage: 110—220V

  • Degree of automation: fully automatic


Features and benefits:

This machine adopts PVC plastic column scraper mesh chain row lifting and low-cavity drum wave fluctuation slope sand collection, inclined angle lifting and draining structure design to deal with boredom, and the line speed is increased by frequency conversion speed regulation, which is reasonable in design, compact in structure and easy to use. In addition to the motor and other components, the whole machine is made of stainless steel SUS304 material, and the surface treatment adopts stainless steel matte sandblasting process, which can meet the actual needs of food production hygiene standards, and is suitable for soaking, desanding, lifting and conveying of bulbs, blocks and flakes.


Technical Parameters:

Name

Immersion elevator

Voltage

110V/220V/380V

Degree of automation

fully automatic

Material

304 stainless steel

Conveyor belt material

PVC

Dimensions

Customized according to needs

Scope of application

soaking and cleaning of root vegetables such as potatoes, pre-cleaning and lifting and conveying of bulb materials.

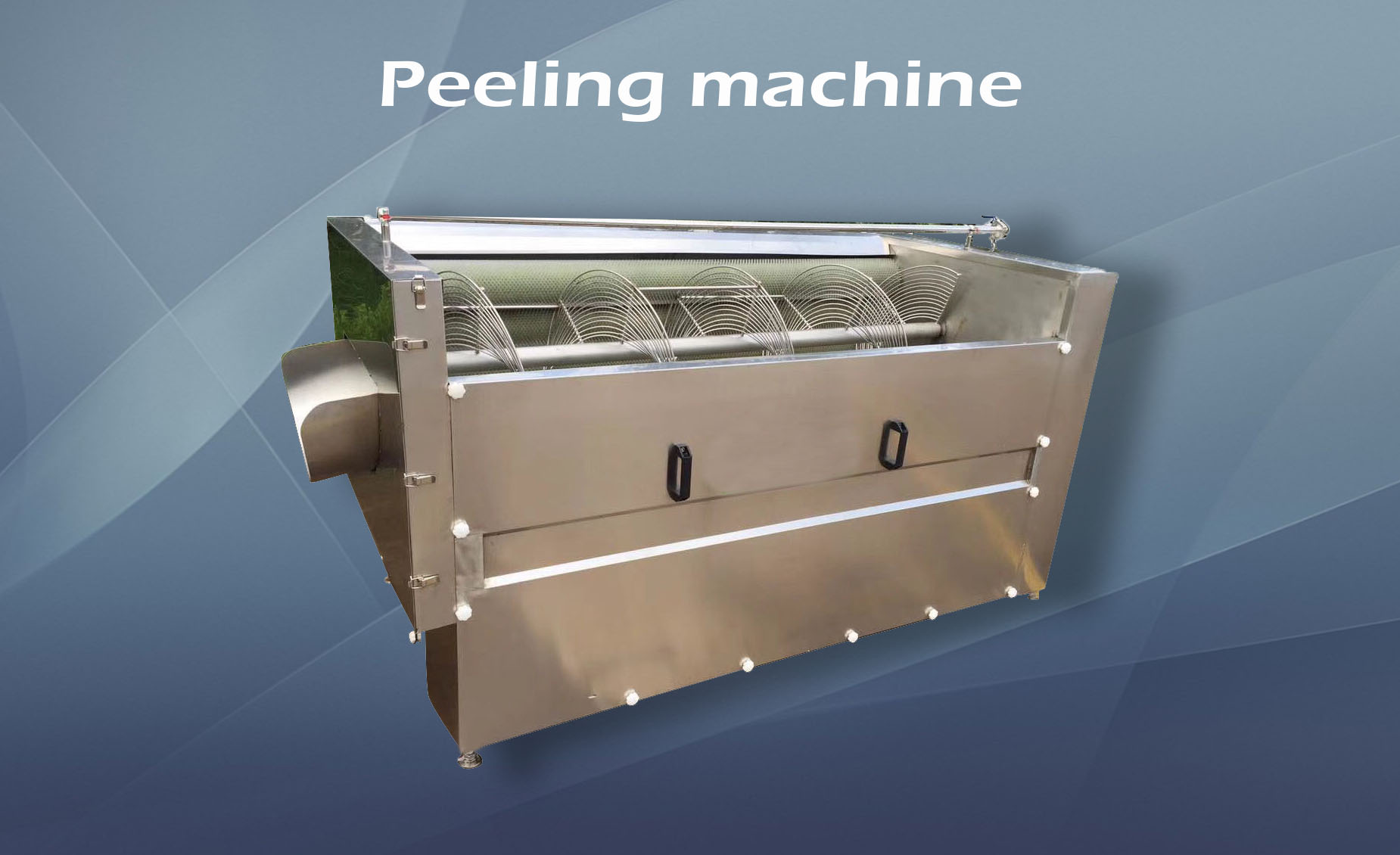

Peeling machine:


  • Voltage:110/220/380V

  • Output:1-2.5 tons

  • Power:2kw


Features and benefits:

The spiral cleaning (peeling) machine is mainly composed of motor transmission, hair roller, etc., and adopts the principle of hair brush, which is widely used for cleaning and peeling of round and oval fruits and vegetables. The use of spiral blade propulsion, flow operation, to achieve automatic continuous cleaning and peeling, can be used with the production line.

Product Usage:

Cleaning and peeling of potatoes, taro, radishes and other materials.

Technical Parameters:

Name

Peeling machine

Voltage

110V/220V/380V

Output

1-2.5 tons

Power

2kw

Dimensions

Customized according to needs

Net weight

500kg

Material

304 stainless steel

Scope of application

It is suitable for cleaning and peeling root fruits and vegetables such as potatoes, ginger, carrots, etc.

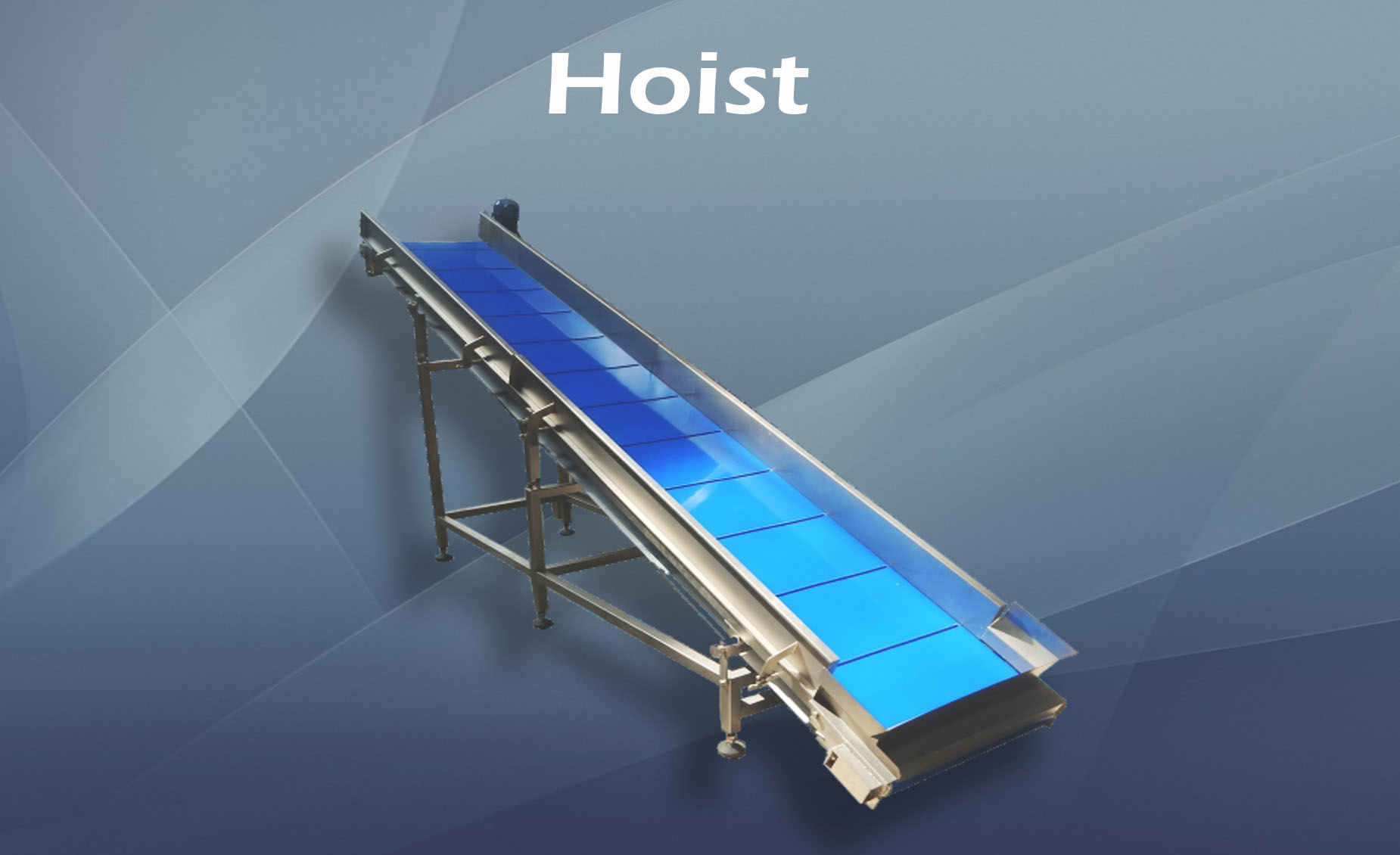

Hoist:


  • Name: Hoist

  • Power: 0.75kw

  • Conveying distance: customizable


Features and benefits:

The hoist can be used for lifting and conveying fruit and vegetable materials; Detachable design, easy to use, bottom movable casters, easy to move; It can be customized according to customer needs; In addition to the motor, electrical appliances and other related parts, the body is made of SUS304 stainless steel pot material, sandblasted matte treatment.

Product Applications:

It is suitable for fresh food distribution enterprises, large enterprises, college canteens, fruit and vegetable processing enterprises, etc


Technical Parameters:

Name

Hoist

Power

0.75kw

Conveying  distance

customizable

Weight

110kg

Lifting speed

adjustable
