The cleaning machine is suitable for the cleaning of various materials, the feed is introduced into the tank, and conveyed out through the conveyor belt, and the tank is equipped with an aeration pump and air pump to blow up, so that the water reaches the "boiling" state to produce oscillating ultrasonic

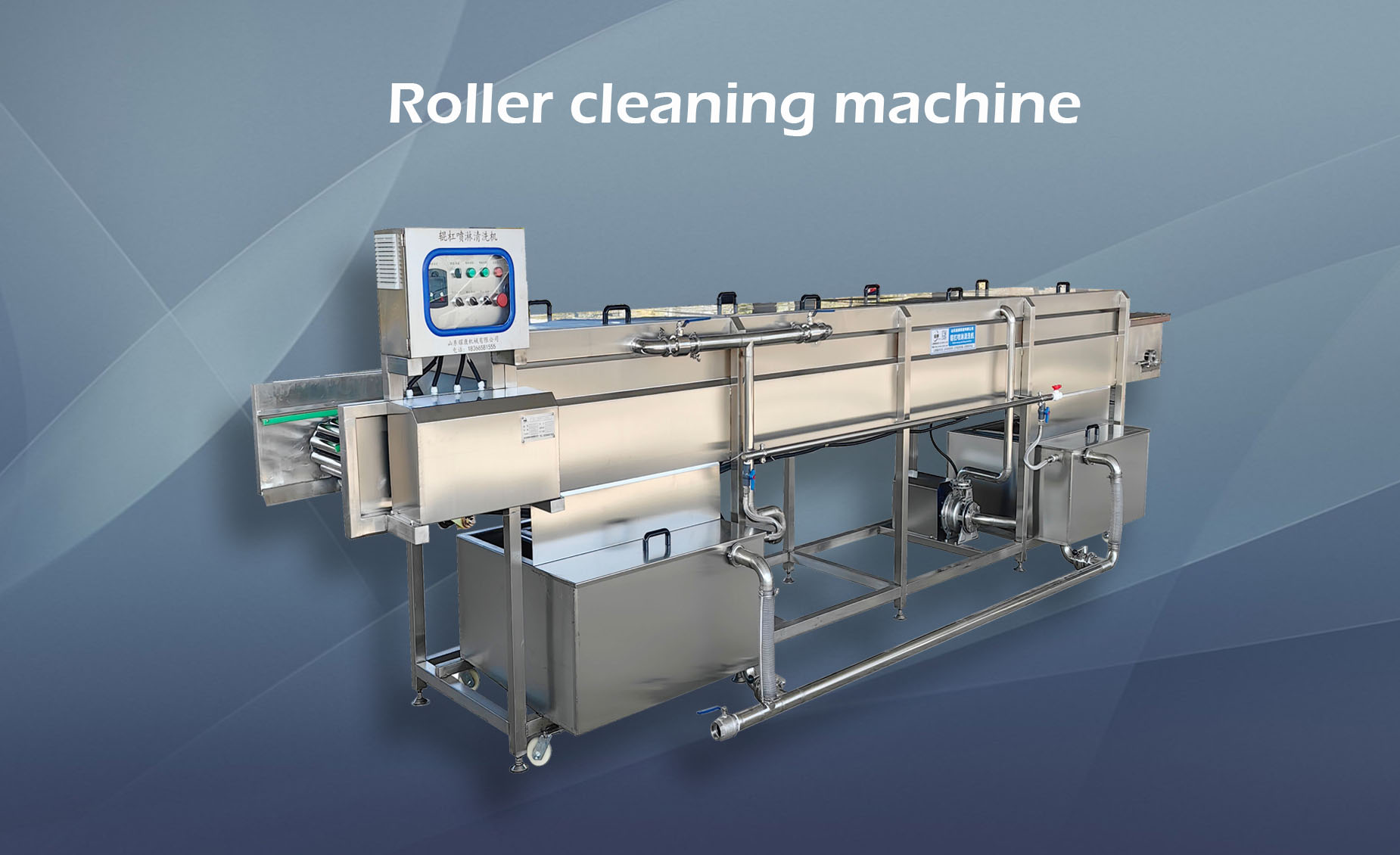

Roller cleaning machine:


  • Name: Roller cleaning machine

  • Material: 304 stainless steel

  • Voltage: 110—220V


Features and benefits:

Features and benefits:

The frame is made of high-quality SUS304 stainless steel, which meets the national food export standards; Each single machine in the assembly line can be customized according to the different processing characteristics of users to meet the process requirements to the greatest extent; The cleaning machine is cleaned by high-pressure bubble water bath, which has large cleaning capacity, high cleaning rate and does not damage the material.



Technical parameters:

Name

Roller cleaning machine

Material

304 stainless steel

Size

Length width height: 4000*1360*1300mm (can be customized)

Power

5.95kw

Conveyor system

304 food grade stainless steel mesh belt

Drive speed control system

variable frequency speed control (1-10 m/min)

Voltage

220V/380V

Moving mode

Universal wheel

Plate thickness

 2mm

Scope of application

It is suitable for the cleaning of vegetables, fruits, seafood, Chinese medicinal materials, red dates and other products.

Network width

1000mm

Weight

800kg

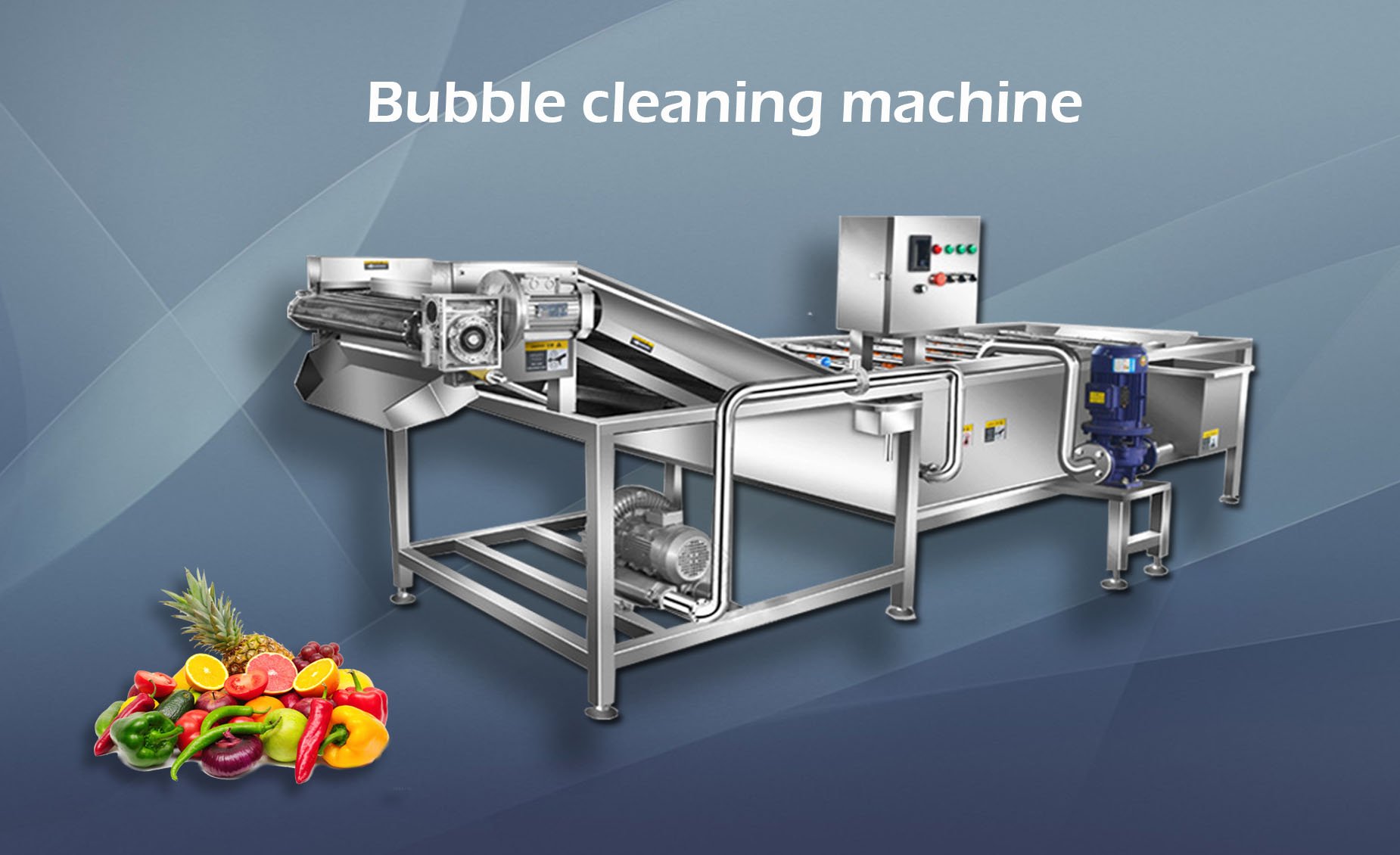

Bubble cleaning machine:


  • Name: Bubble cleaning machine

  • Material: 304 stainless steel

  • Size: Length width height: 4000*1360*1300mm (can be customized)


Features and benefits:

The bubble cleaning machine is composed of a frame, a water tank, a bubble generator, a mesh belt, a circulating washing pump, and a transmission part. Smooth operation, long service life, clean and other characteristics, in line with the food industry standards. The air bubble cleaning machine uses the pressure of the high pressure fan or the pump to make the water produce a strong stirring movement, so that the material rolls in the water, so as to achieve the cleaning effect and the water saving effect is obvious. Using bubble tumbling, brushing, spraying technology to clean materials, each single machine in the line can be tailored according to the user's different processing characteristics, to meet the process requirements, cleaning speed is adjustable, users can be arbitrarily set according to different cleaning content, the machine has a compact structure and a high degree of automation.



Technical parameters:

Name

Bubble cleaning machine

Material

304 stainless steel

Size

Length width height: 4000*1360*1300mm (can be customized)

Power

5.95kw

Conveyor system

304 food grade stainless steel mesh belt

Drive speed control system

variable frequency speed control (1-10 m/min)

Voltage

220V/380V

Moving mode

Universal wheel

Plate thickness

 2mm

Scope of application

It is suitable for the cleaning of vegetables, fruits, seafood, Chinese medicinal materials, red dates and other products.

Network width

1000mm

Weight

800kg

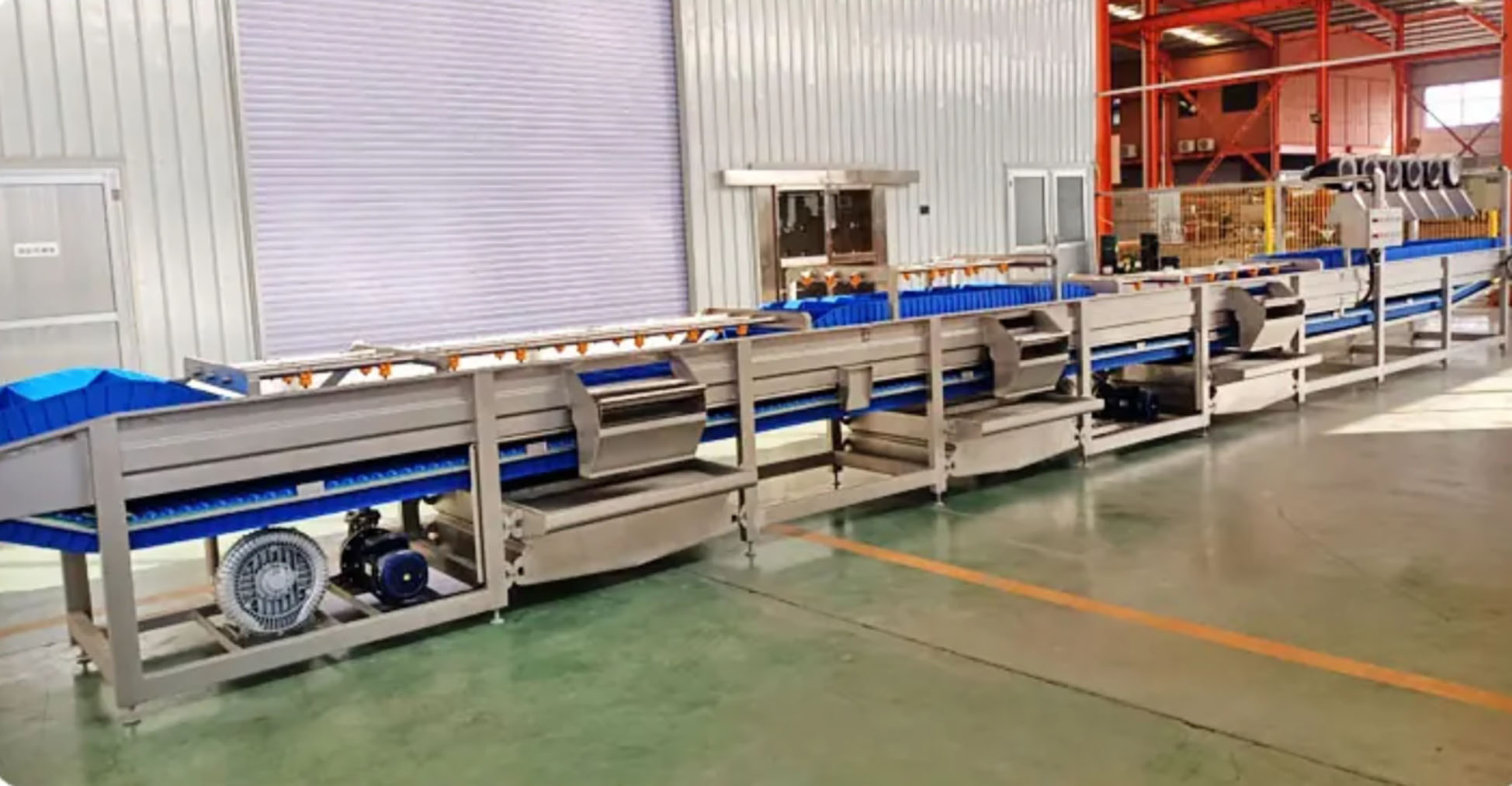

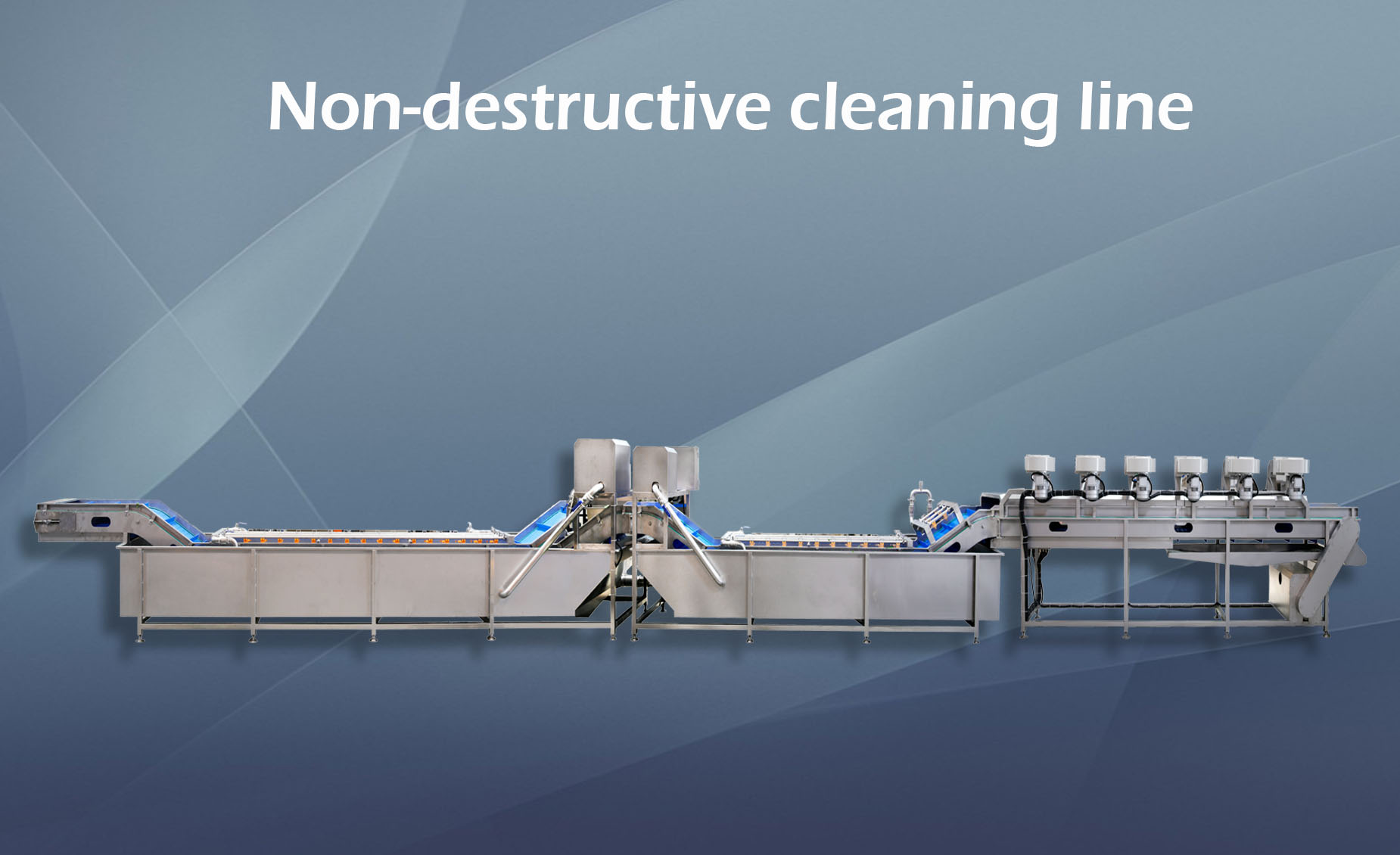

Non-destructive cleaning machine:


  • Name: Non-destructive cleaning line

  • Voltage: 110—220V

  • Material: 304 stainless steel


Features and benefits:

Large-scale fully automated fruit and vegetable non-destructive cleaning and processing production line, is applied to the production line equipment of vegetable automatic cleaning and processing, fast and efficient production and processing of vegetables, this automatic conveying production line, can quickly clean all kinds of vegetables, all kinds of vegetables are quickly cleaned, cleaned and then packaged and distributed.

The whole is composed of double bubbling cleaning and high-pressure rinsing at the lifting place, and is a set of high-efficiency cleaning equipment designed for vegetables and fruits that are difficult to clean.


Technical Parameters:

Name

Non-destructive cleaning line

Voltage

110V/220V/380V

Material

304 stainless steel

Conveyor belt

plastic chain plate

Size

customized according to needs

Product use

leafy vegetable processing
